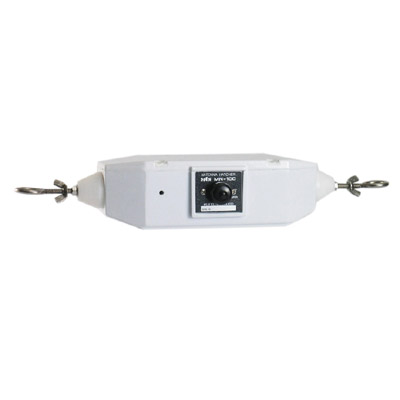

MMN-100

Antenna Matcher

SKU: MMN-100 Categories: Antenna, HF Antenna

Feature

It is difficult to put a full size antenna on a yacht or boat. MMN‑100 has been designed to put an antenna in such restrictions of space, and gives low VSWR with short antenna elements on wide frequency range of 1.5MHz to 30MHz.

Frequency Range	1.5–30MHz
VWSR	<=2.0 with supplied elements
Maximum Input Power	100 watts (CW), 200 watts pep (SSB)
Input Impedance	50ohm
Unbalanced Insertion Loss	6dB
Operating Temperature Range	-30°C to +80°C
Dimensions	180(W) x 65(H) x 55(L) mm (Without projection)
Weight	270g
